CPU
AMD AM4 Socket Ryzen™ with Radeon™ Vega Graphics/Ryzen™ 1st Generation/7th Generation A-series/Athlon X4 Processors
Supports CPU up to 8 cores
* Refer to www.asus.com for CPU support list

Chipset
AMD B350

Memoria
AMD Ryzen™ with Radeon™ Vega Graphics/ Ryzen™ 1st Generation Processors
4 x DIMM, Max. 64GB, DDR4 3200(O.C.)/2933(O.C.)/2666/2400/2133 MHz Un-buffered Memory
AMD 7th Generation A-Series/Athlon X4 Processors
4 x DIMM, Max. 64GB, DDR4 2400/2133 MHz Non-ECC, Un-buffered Memory
Dual Channel Memory Architecture
* Hyper DIMM support is subject to the physical characteristics of individual CPUs.
* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).

Gráficos
Integrated Graphics in the AMD Ryzen™ with Radeon™ Vega Graphics/ 7th Generation A-Series APU
Multi-VGA output support : HDMI/DVI/RGB ports
- Supports HDMI 1.4b with max. resolution 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz
- Supports DVI-D with max. resolution 1920 x 1200 @ 60 Hz
- Supports RGB with max. resolution 1920 x 1200 @ 60 Hz
Maximum shared memory of 2048 MB (for iGPU exclusively)

Slots de Expansión
AMD Ryzen™ 1st Generation Processors
1 x PCIe 3.0/2.0 x16 (x16 mode)
AMD Ryzen™ with Radeon™ Vega Graphics /7th Generation A-Series/Athlon X4 Processors
1 x PCIe 3.0/2.0 x16 (x8 mode)
AMD B350 chipset
2 x PCIe 2.0 x1

Almacenamiento
AMD B350 chipset:
4 x SATA 6Gb/s port(s), gray,
Support Raid 0, 1, 10
AMD Ryzen™ with Radeon™ Vega Graphics/ Ryzen™ 1st Generation/ 7th Generation A-Series/ Athlon X4 Processors:
2 x SATA 6Gb/s port(s), gray,
AMD Ryzen™ with Radeon™ Vega Graphics/ Ryzen™ 1st Generation Processors:
1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)*1
AMD 7th Generation A-Series/Athlon X4 Processors:
1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 2 mode)*2
LAN
Realtek® RTL8111H, 1 x Gigabit LAN Controller(s)

Audio
Realtek® ALC887 8-Channel High Definition Audio CODEC
Puertos USB
ASMedia® USB 3.1 Gen 2 controller:
2 x USB 3.1 port(s) (2 at back panel, teal blue)
AMD Ryzen™ with Radeon™ Vega Graphics/ Ryzen™ 1st Generation/ 7th Generation A-Series/Athlon X4 Processors :
4 x USB 3.0 port(s) (4 at back panel, blue)
AMD B350 chipset:
2 x USB 3.0 port(s) (2 at mid-board)
AMD B350 chipset:
4 x USB 2.0 port(s) (4 at mid-board)

Características Especiales
ASUS 5X Protection III:
- ASUS SafeSlot Core: Fortified PCIe Slot prevents damage
- ASUS LANGuard: Protects against LAN surges, lightning strikes and static-electricity discharges!
- ASUS Overvoltage Protection: World-class circuit-protecting power design
- ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability!
- ASUS DIGI+ VRM: 6 Phase digital power design
ASUS Exclusive Features:
- AI Suite 3
- Ai Charger
- PC Cleaner
ASUS Quiet Thermal Solution:
- Stylish Fanless Design Heat-sink solution
- ASUS Fan Xpert
ASUS EZ DIY:
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
- Multi-language BIOS
ASUS Q-Design:
- ASUS Q-Slot
- ASUS Q-DIMM

Operating System Support
Windows® 10 64bit

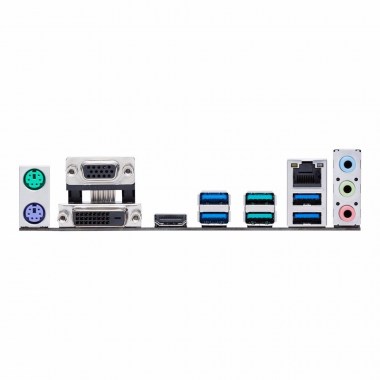

Puertos I/O Traseros
1 x PS/2 keyboard (purple)
1 x PS/2 mouse (green)
1 x DVI-D
1 x D-Sub
1 x HDMI
1 x LAN (RJ45) port(s)
2 x USB 3.1 Gen 2 (teal blue)
4 x USB 3.1 Gen 1 (blue),
3 x Audio jack(s)

Internal I/O
1 x Fan RGB header
1 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s) (19-pin)
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
1 x M.2 Socket 3 with M Key, type 2242/2260/2280/22110 storage devices support (SATA mode & PCIE mode)
1 x COM port(s) connector(s)
6 x SATA 6Gb/s connector(s)
1 x CPU Fan connector(s) (1 x 4 -pin)
1 x Chassis Fan connector(s) (1 x 4 -pin)
1 x S/PDIF out header(s)
1 x 24-pin EATX Power connector(s)
1 x 8-pin ATX 12V Power connector(s)
1 x Front panel audio connector(s) (AAFP)
1 x System panel(s)
1 x Clear CMOS jumper(s)
1 x Speaker connector

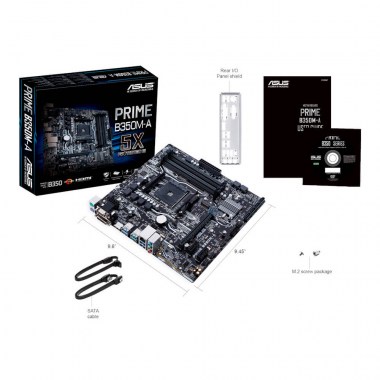

Accessorios
User's manual
I/O Shield
2 x SATA 6Gb/s cable(s)
1 x M.2 Screw Package
1 x Supporting DVD

BIOS
128 Mb Flash ROM, UEFI AMI BIOS, PnP,WfM2.0, SM BIOS 3.0, ACPI 6.1, Multi-language BIOS, ASUS EZ Flash 3, ASUS CrashFree BIOS 3, My Favorites, Last Modified log, F12 PrintScreen, ASUS DRAM SPD (Serial Presence Detect) memory information, F6 Qfan Control

Sistema Operativo
Windows® 10 64-bit

Factor de forma
mATX Form Factor
9.6 inch x 9.45 inch (24.4 cm x 24 cm)

Nota
1*The M.2 Socket shares bandwidth with the SATA6G_5/6 ports, therefore the SATA6G_5/6 ports cannot be used when a SATA/PCIE mode M.2 device is installed.
2*The M.2 Socket shares bandwidth with the SATA6G_5/6 ports, therefore the SATA6G_5/6 ports cannot be used when a SATA mode M.2 device is installed.
